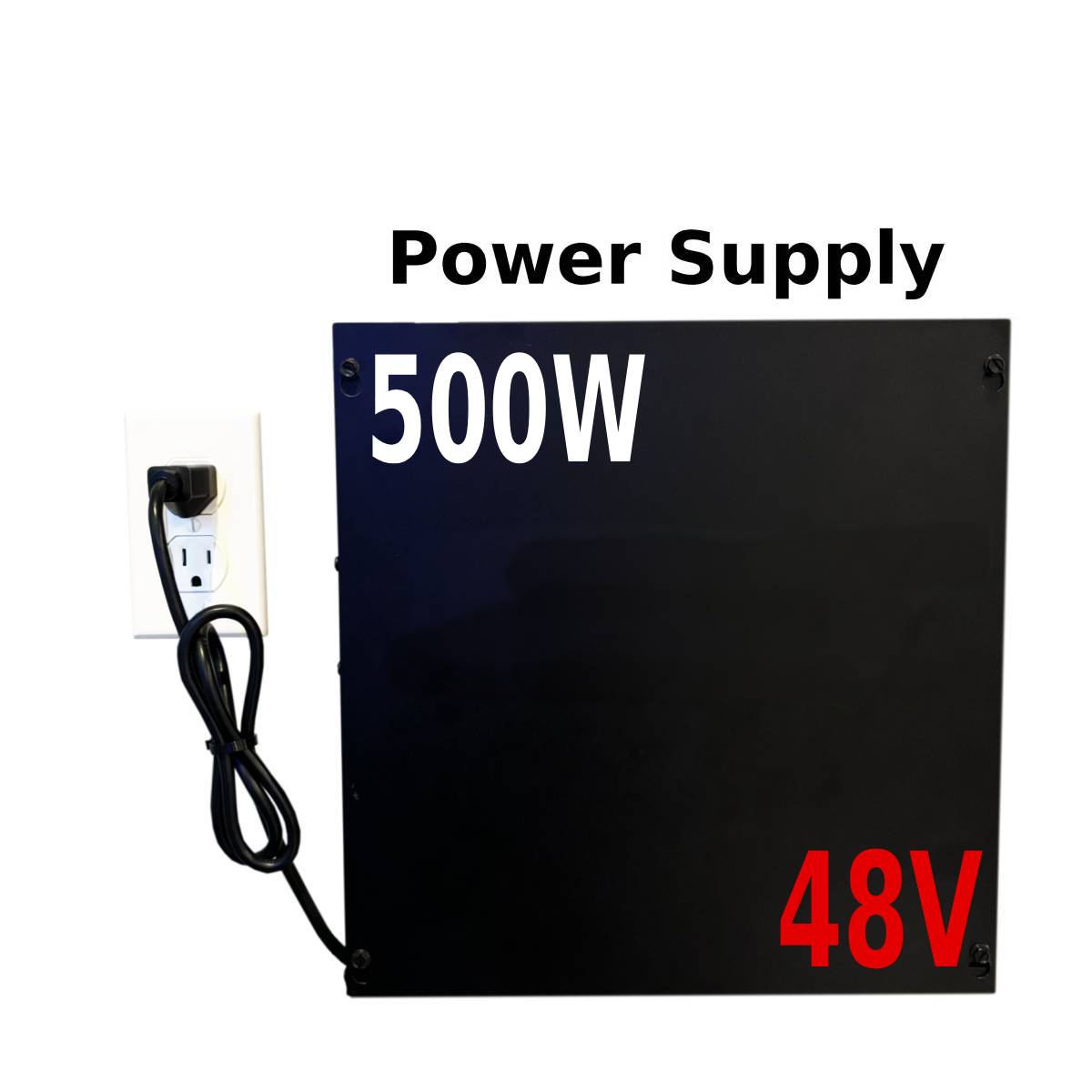

Eave Light 48V Power Supply - 500 Watt
Eave Light 48V Power Supply - 500 Watt
NOTICE:
Please use 350W controllers and power supplies for all projects unless a 500W unit is specifically required. (See table below for best cost options for power supplies and controllers)
The JellyFish 48V Power Supply is designed to add additional lights to a system controlled with a 48V or 24V P2 Controller. The P2 Power Supply can power up to 400 lights A 48V or 24V P2 Controller must be combined with a 48V P2 Power Supply to to provide LED light control. Each power supply combined with a P2 Controller allows you to add an additional 400 lights.
Power Limitations:
- 333 Lights Continuously or on 1 port
- 400 Lights evenly distributed across 2 or more ports
| Lights | 6 Inch Spacing | 9 Inch Spacing | 16 Inch Spacing |
| 333 | 166.5 FT | 250 FT | 444 FT |
| 400 | 200 FT | 300 FT | 533 FT |
The recommended installed location is in the garage or in a mechanical room to provide a controlled accessible environment for operation.
POWER SUPPLY OPTIONS
- Quiet fan Now replaces the standard option with the original price of the standard
Specifications
- Ambient operation humidity: 0%-95% non condensing
- Ambient operating temperature: -5°F to 110°F
- Cooling: built in fan
- LED Power ports: 4
- Maximum # of JellyFish LED's on 1 port: 333 Lights 400 Lights Max using multiple ports
- Maximum power output: 336W
- Input Voltage: 85-264 VAC
- Output Voltage: 48V
- Dimensions: 11.5"h x 11.5"w x 4"d
- Weight: 8.5lbs
