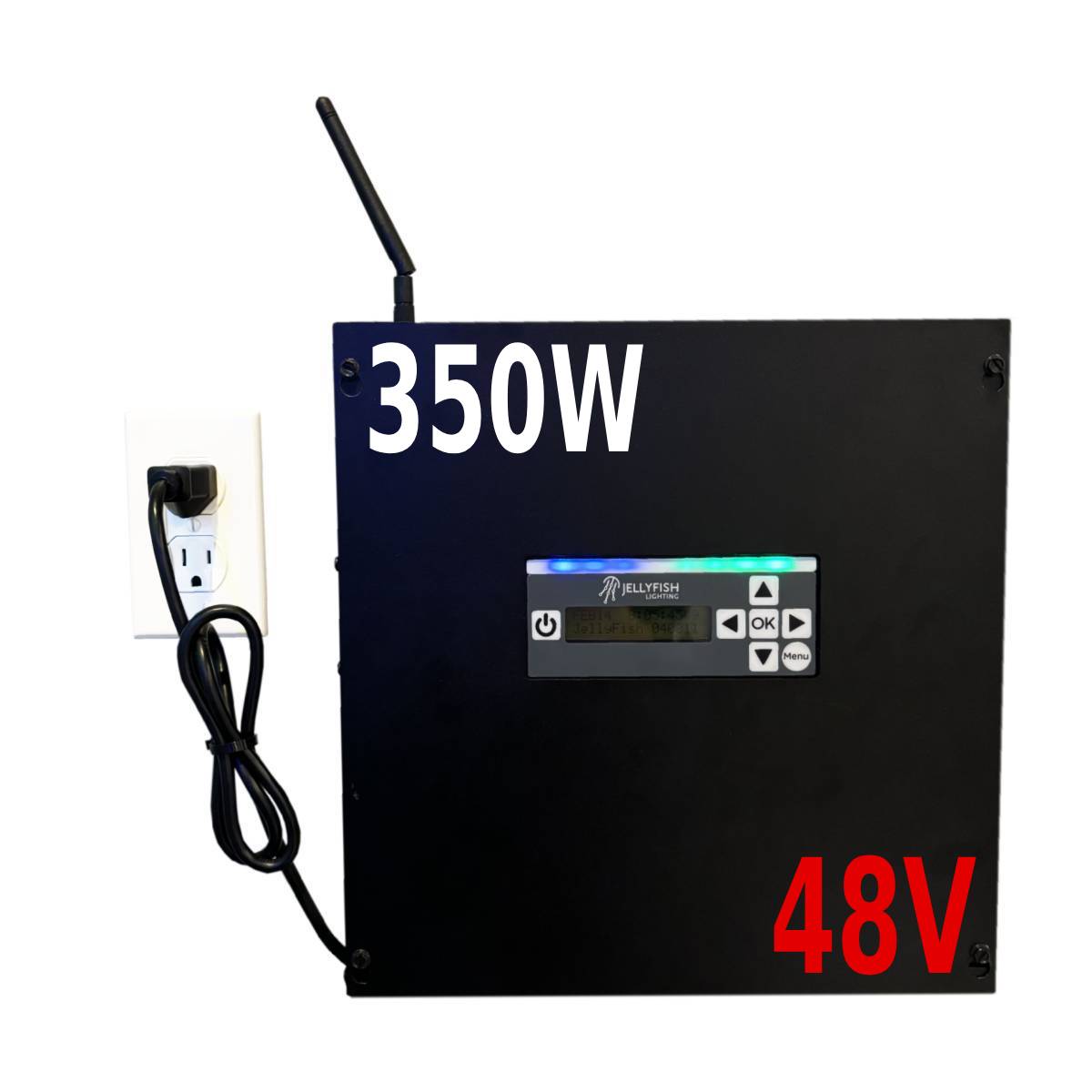

Eave Light 48V Controller - 350 Watt

NEW 350 Watt - Eave Light Controller

New Features:

Light weight aluminum case
Nearly silent as standard option
Right sized for smaller projects
Lower cost

(Make sure you order the correct voltage and Wattage controller for your project - 24v for landscape and patio and 48v for Eave Lighting. See Power table below for Wattage limitations)

The JellyFish 48V controller is designed to control JellyFish Lighting LED eave lights. The Controller can power up to 300 lights from a single port or combined ports from a single controller. A 48V Controller may be combined with a 48V Power Supply to increase the number of lights on a system. Each 350 Watt power supply combined with a Controller allows you to add an additional 300 lights up to a total of 1200 lights with multiple power supplies. Each 500 Watt power supply combined with a controller allows you to add an additional 400 lights.

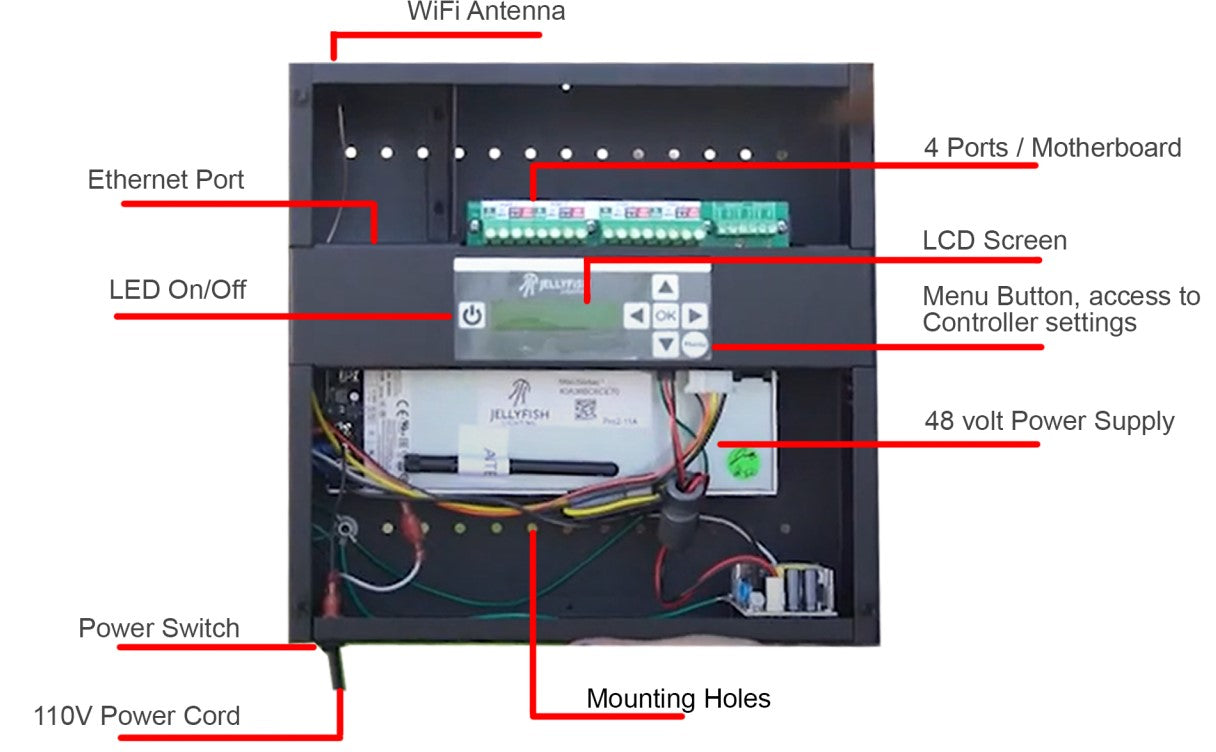

The Controller is usually controlled through the JellyFish Cloud App, and can be connected to the customers network via Wi-Fi or a hard wired Ethernet connection. The Controller is also equipped with an LCD screen and front panel controls to select lighting patterns manually.

The recommended installed location is in the garage or in a mechanical room to provide a controlled accessible environment for operation.

350 Watt Power Limitations:

300 Lights Max or Single Port
Only 33 lights less than the 500 Watt single port limitation

Lights	6 Inch Spacing	9 Inch Spacing	18 Inch Spacing
300	150 FT	225 FT	450 FT

Specifications

Ambient operation humidity: 0%-95% non condensing
Ambient operating temperature: -40°F to 140°F
Cooling: built in fan
LED control ports: 4
Maximum # of JellyFish LED's on each port: 300 (without additional power supply)
Maximum # of JellyFish LED's on each Controller: 1200 (with multiple additional 350 Watt power supplies)
Input Voltage: 85-264 VAC
Output Voltage: 48V

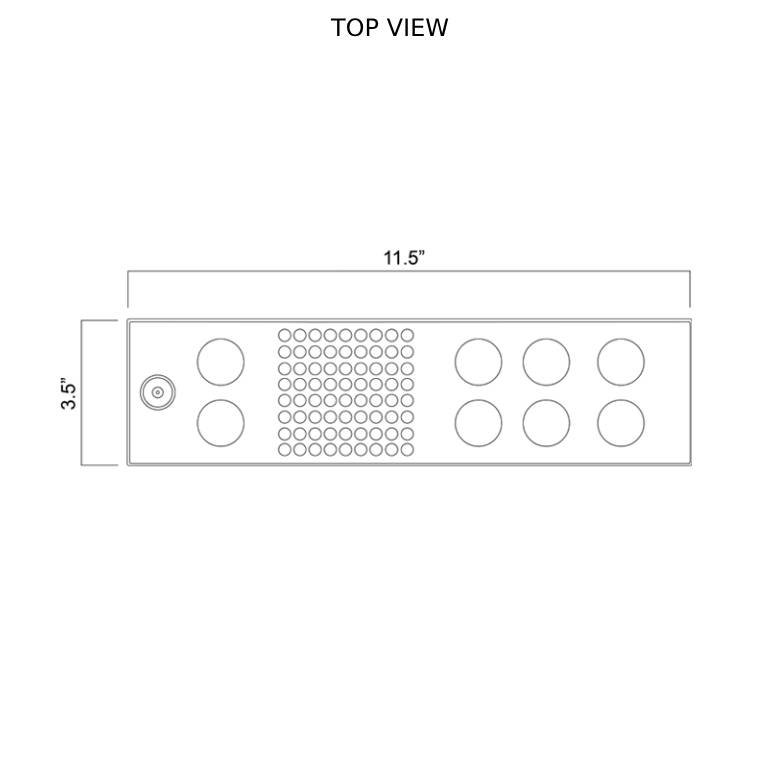

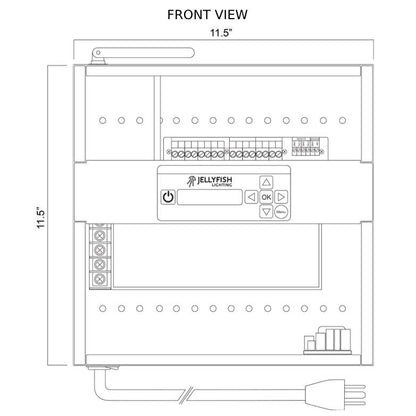

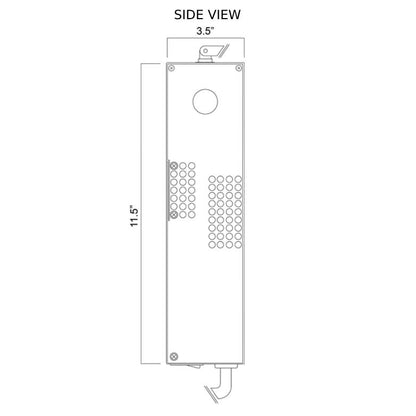

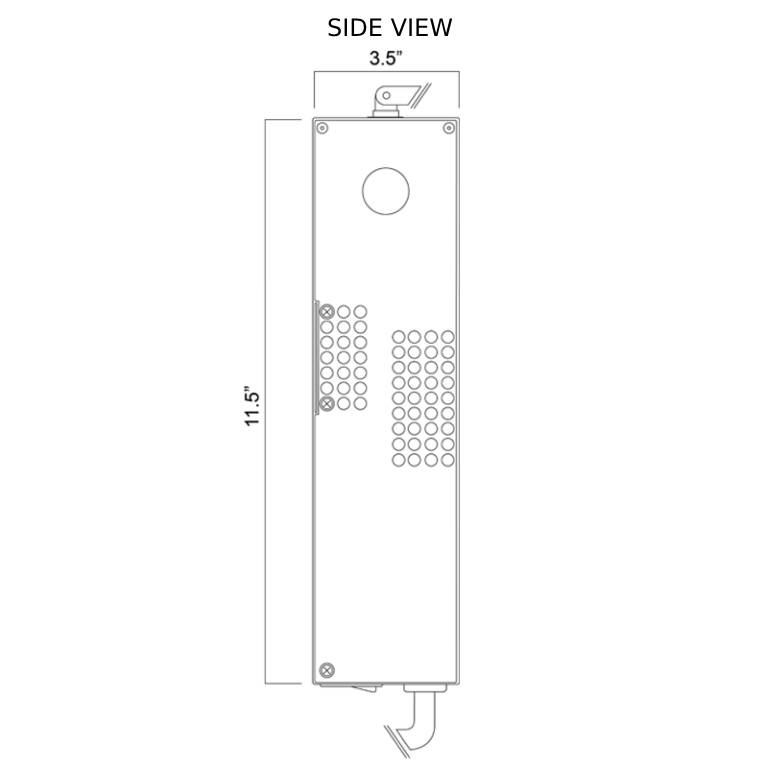

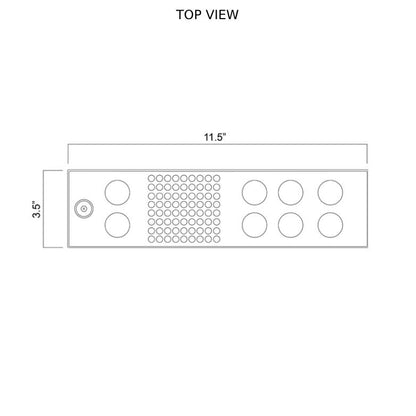

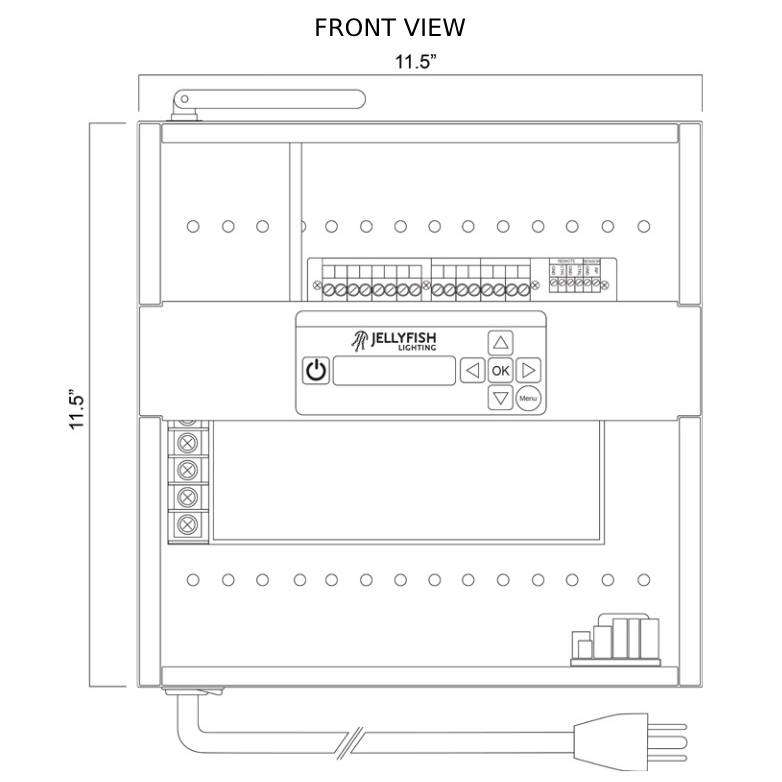

Dimensions: 11.5"h x 11.5"w x 4"d (Without Antenna)
Weight: 8.5lbs
