(Make sure you order the correct voltage and Wattage controller for your project - 24v for landscape and patio and 48v for Eave Lighting. See Power table below for Wattage limitations)

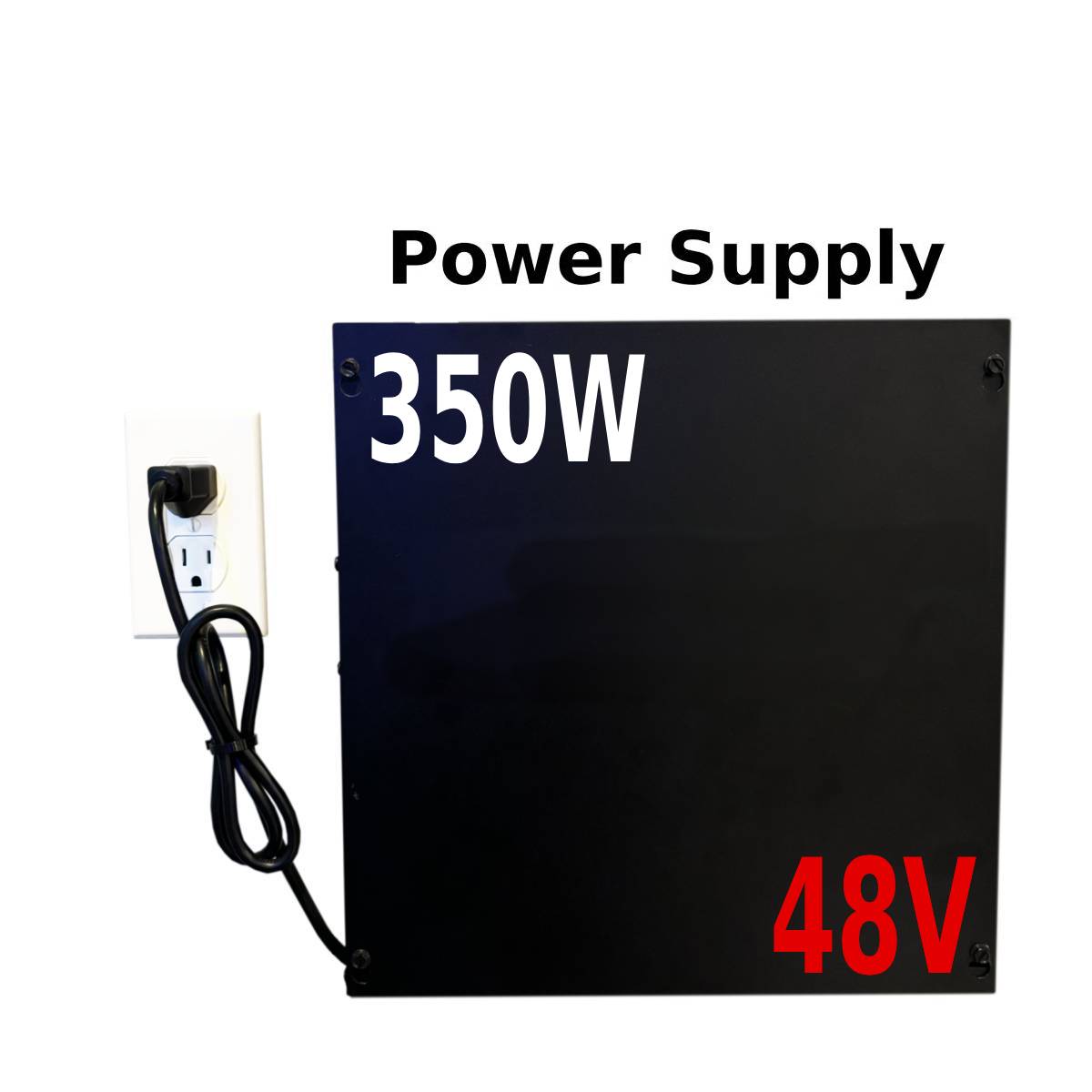

The JellyFish 48V Power Supply is designed to add additional lights to a system controlled with a 48V or 24V Controller. The Power Supply can power up to 300 lights. A 48V or 24V Controller must be combined with a 48V Power Supply to to provide LED light control.
350 Watt Power Limitations:
300 Lights Max or Single Port
Only 33 lights less than the 500 Watt single port limitation
Lights
6 Inch Spacing
9 Inch Spacing
18 Inch Spacing
300
150 FT
225 FT
450 FT
Specifications
Ambient operation humidity: 0%-95% non condensing
Ambient operating temperature: -5°F to 110°F
Cooling: built in fan
LED Power ports: 4
Maximum # of JellyFish LED's on 1 or more ports: 300 Lights
