NOTE: All 6 Inch and 16 Inch space track is made to order. Please allow up to 3 business days for fulfillment
6 Inch and 16 Inch track only made in standard track at this time.
Spacing
6 Inch
Lights/Strand
50
Length/Strand
25 FT

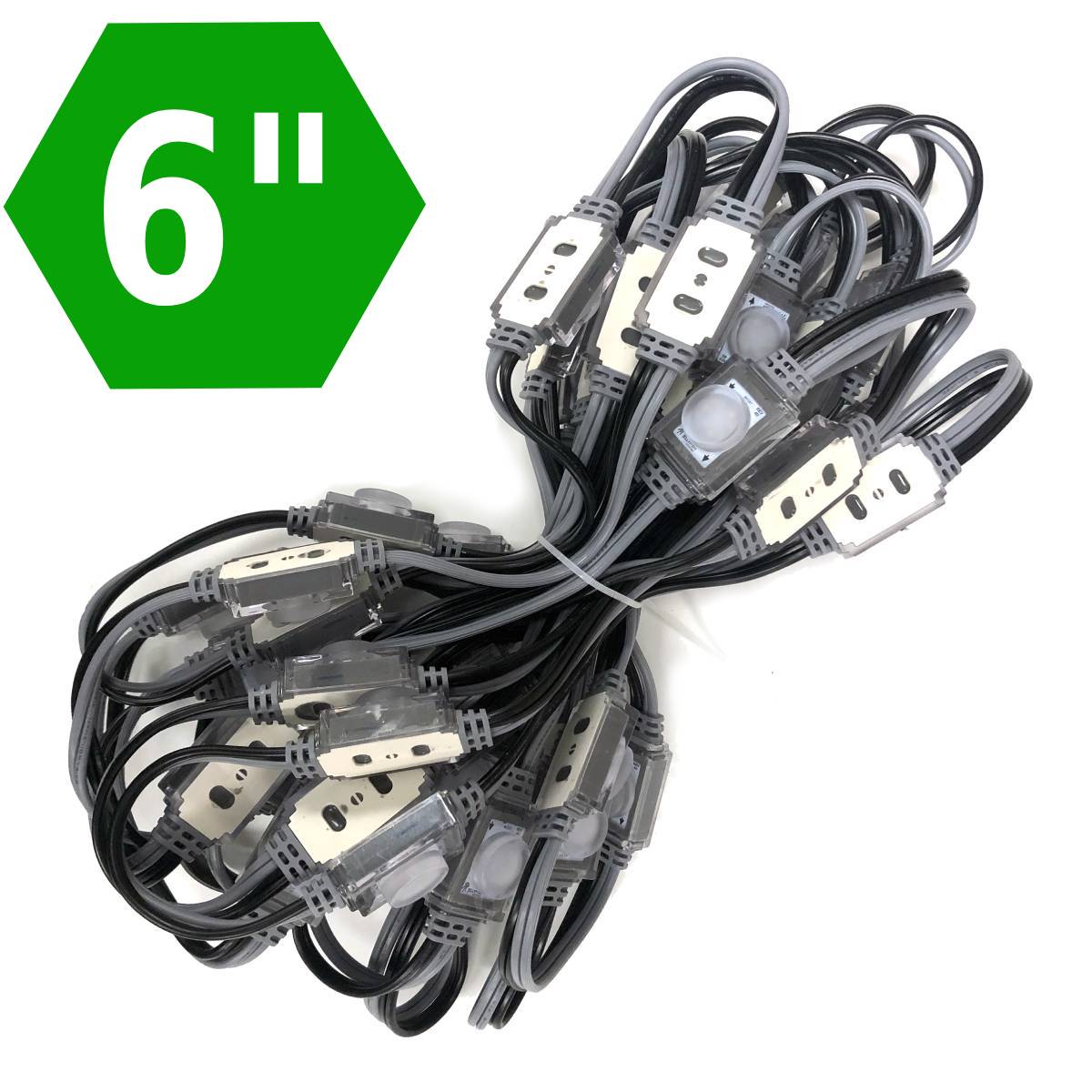

JellyFish Lighting Jelly Lights for commercial and residential installations, sold by the strand and require a 48V Controller for power and control.
4 wire LED - designed with redundant data to prevent all lights from failing if a single light is defective or inoperable.
Surge protection -each lights is individually protected with a surge protector in case of power surges and lightning strikes.
Intelligent digital port data & signal reshaping amplification drive circuit used to reliably repeat signals from light to light while allowing for large wire jumps.
Internal oscillator & 12V programmable constant current output drive designed for constant power and even lighting
UV protected lamps and wiring used to protect the wiring and light from yellowing and long-term UV damage.
Efficient power use and up to 48V 500 Watt power supply allows for up to 400 consecutive lights
Each strand includes 50 lights space 6 inches apart totaling 25 ft per strand
3000K CCT (or Warmer)
Specifications
Beam Angle
140°
Emitting Colors
Red, Green, Blue
Operating Voltage
48 Volts
Max Power Draw
1W per LED Module
Amperage
.019 amps at 48V
Data Mode
WS2811
Lumens
21 Lumens per LED Module
Lens Type
Frosted
IP Rating
67
Operating Temperature
-40°C to +55°C (-40°F to +131°F)
White Color
2200k-7000k (adjustable)
Wire
16 gauge
Safety Certification
UL E521737 & UL E533890
Measurements
Width
1.29 in
Length
2.73 in
Lens diameter
.94 in
Height w/out lens
.55 in
Height W/ lens
.82 in
Spacing between modules
6 +/- 3/64 in
Light Revision is currently the Mark 5.
Previous light revisions must be requested in your order notes
