Outdoor Landscape and Patio Controller - LIMITED QUANTITY AVAILABLE
(Make sure you order the correct voltage controller for your project - 24v for landscape and patio and 48v for Eave Lighting)

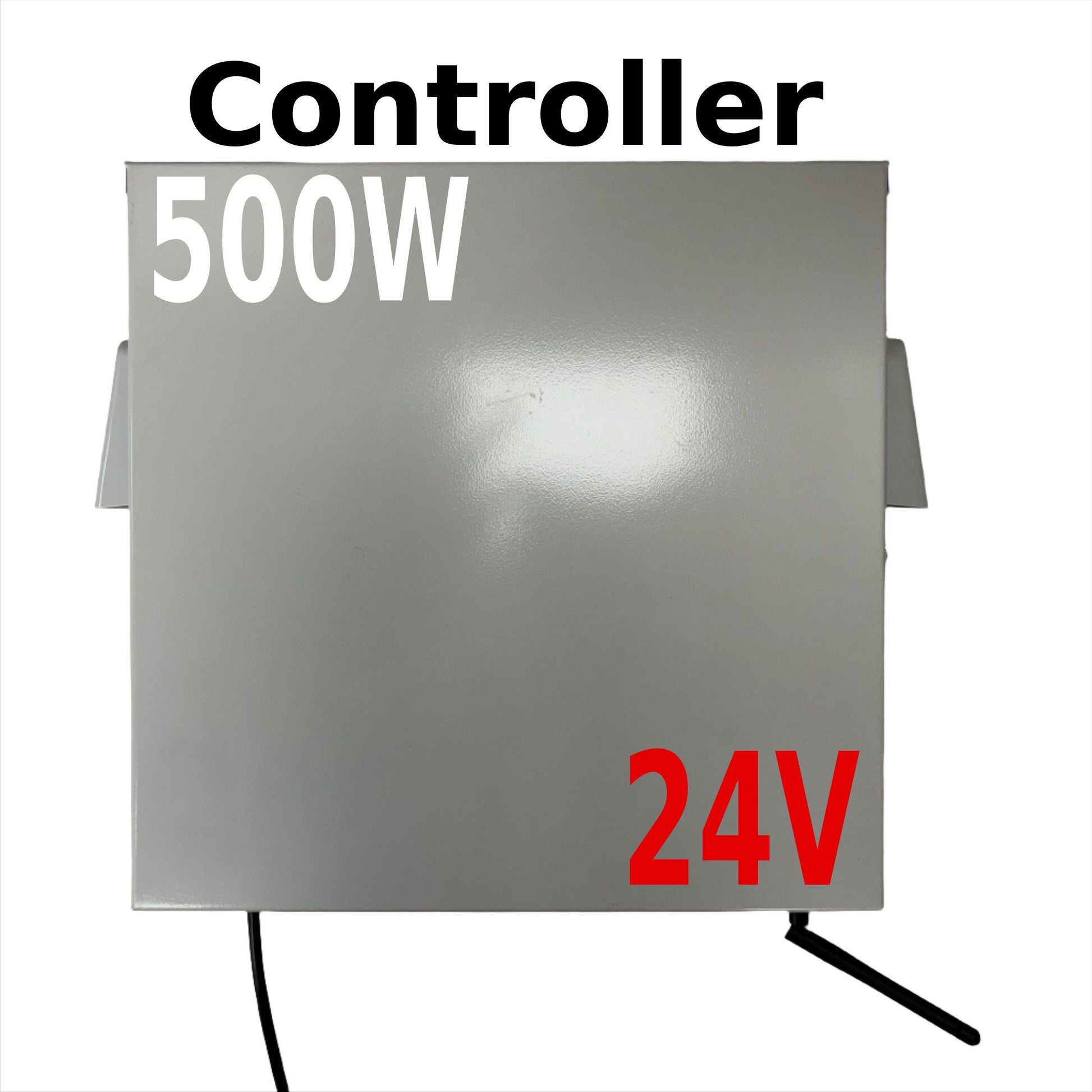

The JellyFish 24V P2 controller is designed to control JellyFish Lighting Landscape and Patio Lights. The P2 Controller can power up to 25 landscape or 50 patio lights from a single port and up to 50 landscape or 100 patio lights with combined ports from a single controller. A 24V P2 Controller may be combined with a 24V P2 Power Supply to increase the number of lights on a system.

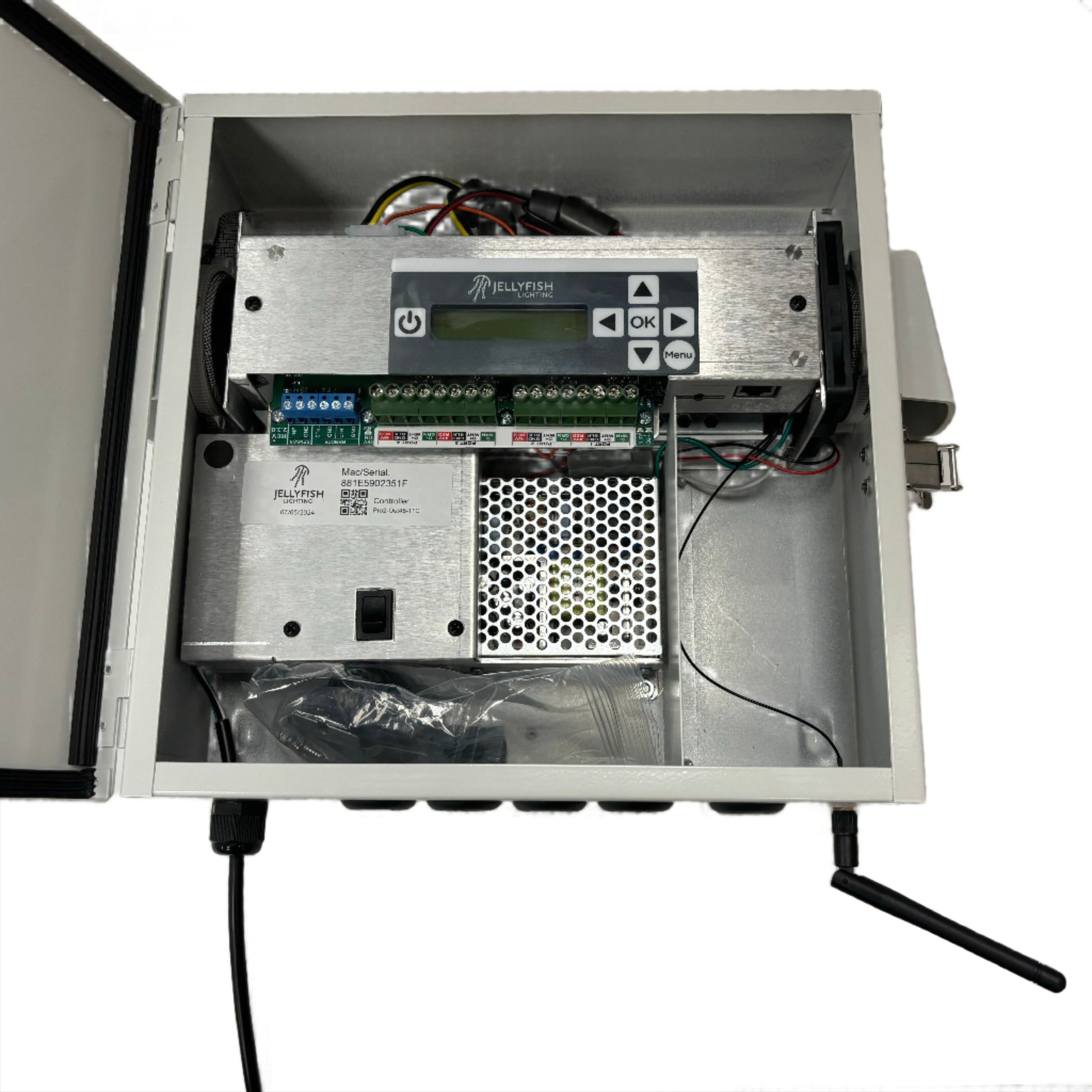

The P2 Controller is usually controlled through the JellyFish Cloud App, and can be connected to the customers network via Wi-Fi or a hard wired Ethernet connection. The P2 Controller is also equipped with an LCD screen and front panel controls to select lighting patterns manually.
The recommended installed location is in the garage or in a mechanical room to provide a controlled accessible environment for operation.
CONTROLLER OPTIONS
Quiet is standard for all outdoor controllers
Control JellyFish Eave Lights (48V Power Supply required)
Specifications
Ambient operation humidity: 0%-95% non condensing
Ambient operating temperature: -40°F to 140°F
Cooling: built in fan
LED control ports: 4
Input Voltage: 85-264 VAC
Output Voltage: 24V
Dimensions: 11.5"h x 11.5"w x 4"d (Without Antenna)
