48V Outdoor Eave Light Controller - LIMITED QUANTITY AVAILABLE
(Make sure you order the correct voltage controller for your project - 24v for landscape and patio and 48v for Eave Lighting)

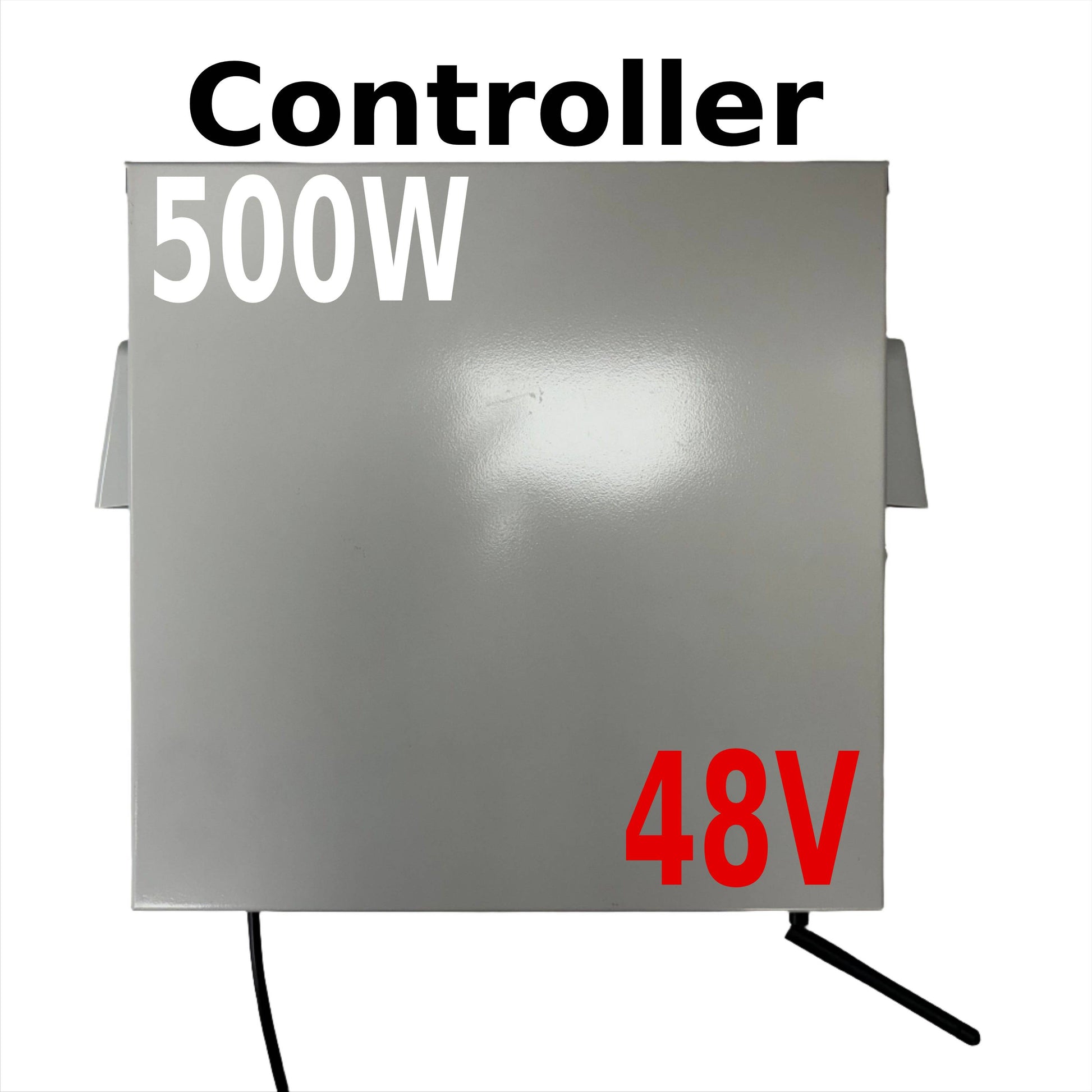

The JellyFish 48V P2 controller is designed to control JellyFish Lighting LED eave lights. The P2 Controller can power up to 333 lights from a single port and up to 400 lights with combined ports from a single controller. A 48V P2 Controller may be combined with a 48V P2 Power Supply to increase the number of lights on a system. Each power supply combined with a P2 Controller allows you to add and additional 400 lights up to a total of 1600 lights with multiple power supplies.
The P2 Controller is usually controlled through the JellyFish Cloud App, and can be connected to the customers network via Wi-Fi or a hard wired Ethernet connection. The P2 Controller is also equipped with an LCD screen and front panel controls to select lighting patterns manually.
The recommended installed location is in the garage or in a mechanical room to provide a controlled accessible environment for operation.
500 Watt Power Limitations:
333 Lights
400 Lights evenly distributed across 2 or more ports
Lights
6 Inch Spacing
9 Inch Spacing
16 Inch Spacing
333
166.5 FT
250 FT
444 FT
400
200 FT
300 FT
533 FT
Specifications
Ambient operation humidity: 0%-95% non condensing
Ambient operating temperature: -40°F to 140°F
Cooling: built in fan
LED control ports: 4
Maximum # of JellyFish LED's on each port: 333 (without additional power supply)
Maximum # of JellyFish LED's on each Controller: 1600 (with multiple additional power supplies)
Maximum # of JellyFish LED's on each port: 1600 (with additional power supply)
Maximum power output: 336W
Input Voltage: 85-264 VAC
Output Voltage: 48V
Dimensions: 11.5"h x 11.5"w x 4"d (Without Antenna)
